Connect to S3 authenticating with Microsoft Entra ID

Use Microsoft Entra ID to authenticate with S3 by configuring as an OpenID Connect (OIDC) Identity Provider in AWS IAM.

Tip

Refer to Custom connection profile using OpenID Connect provider and AssumeRoleWithWebIdentity STS API for custom configuration of connection profiles using OIDC web identity federation to connect to AWS S3.

Requirements

• Cyberduck 9.3.0 or later required

• Mountain Duck 5.1.0 or later required

Configuration in Microsoft Entra ID

Create an application in the Microsoft Entra ID portal and configure it as an OIDC Identity Provider.

1. Navigate to Entra ID → → App registrations in the Microsoft Entra ID portal and choose New registration.

2. In Authentication, add a redirect URI with the value x-cyberduck-action://oauth to allow authentication with Cyberduck.

3. In Authentication, add a redirect URI with the value x-mountainduck-action://oauth to allow authentication with Mountain Duck.

4. Copy the OAuth Client ID from Overview → Essentials → Application (client) ID.

Configuration in AWS IAM

Create an OIDC identity provider

1. In AWS IAM console add a new identity provider in Identity providers.

2. Configure the provider as type OpenID Connect with the provider URL set to https://login.microsoftonline.com/<TENANT-ID>/v2.0. Replace with your Microsoft Entra ID tenant ID. Copy the ARN for the next step.

3. Set the Audience to the Application (client) ID from Microsoft Entra.

Create a role

Assign a role to the identity provider created in the previous step with permissions to access S3.

1. In AWS IAM console add a new role.

2. Choose Assign role followed by Create a new role with a Web identity trusted entity type. It should have Identity provider and Audience options prefilled with the ARN of the identity provider and Client ID from Microsoft Entra.

3. The resulting trust policy will look similar to the following:

   {
   "Version": "2012-10-17",
   "Statement": [
       {
           "Effect": "Allow",
           "Principal": {
               "Federated": "arn:aws:iam::<ACCOUNT_ID>:oidc-provider/login.microsoftonline.com/<TENANT-ID>/v2.0"
           },
           "Action": "sts:AssumeRoleWithWebIdentity",
           "Condition": {
               "StringEquals": {
                   "login.microsoftonline.com/<TENANT-ID>/v2.0:aud": "<Application (client) ID>"
               }
           }
       }
   ]
   }


   Tip

   The <ACCOUNT_ID> is replaced with your AWS account ID and <Application (client) ID> with the OAuth Client ID of the application you created in the previous step. For Federated, the ARN of the identity provider you created in the previous step is set. For the condition aud use the application client ID of the application you created in the previous step.

4. In the next step attach a permission policy to the role such as the managed policy AmazonS3FullAccess.

5. Copy the Role ARN from the Summary tab.

Create a bookmark in Cyberduck or Mountain Duck

1. Open Preferences… → Profiles in Cyberduck or Mountain Duck.

2. Enable the AWS S3 (Microsoft Entra) connection profile.

3. Add a new Bookmark in Cyberduck or Mountain Duck and choose AWS S3 (Microsoft Entra) in the protocol dropdown.

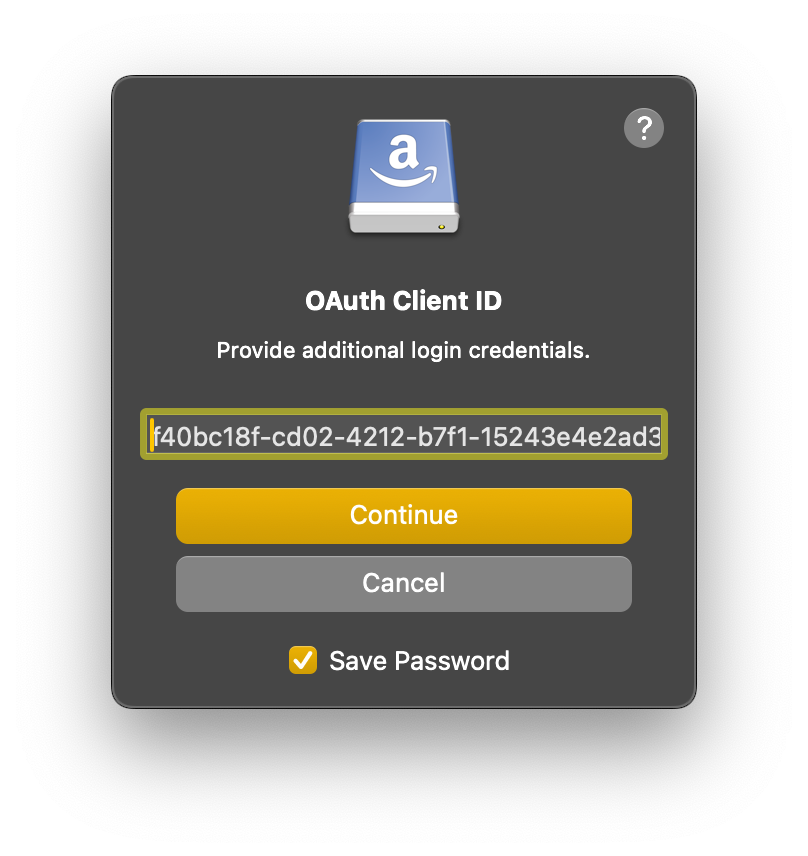

4. Enter the Application (client) ID from the application registration in Microsoft Entra for OAuth Client ID when prompted. It will be saved in the bookmark as a custom property.



   Tip

   The OAuth Client ID is the same as the Application (client) ID from the application registration in Microsoft Entra.

   Note

   Alternatively set OAuth Client ID in a custom connection profile.

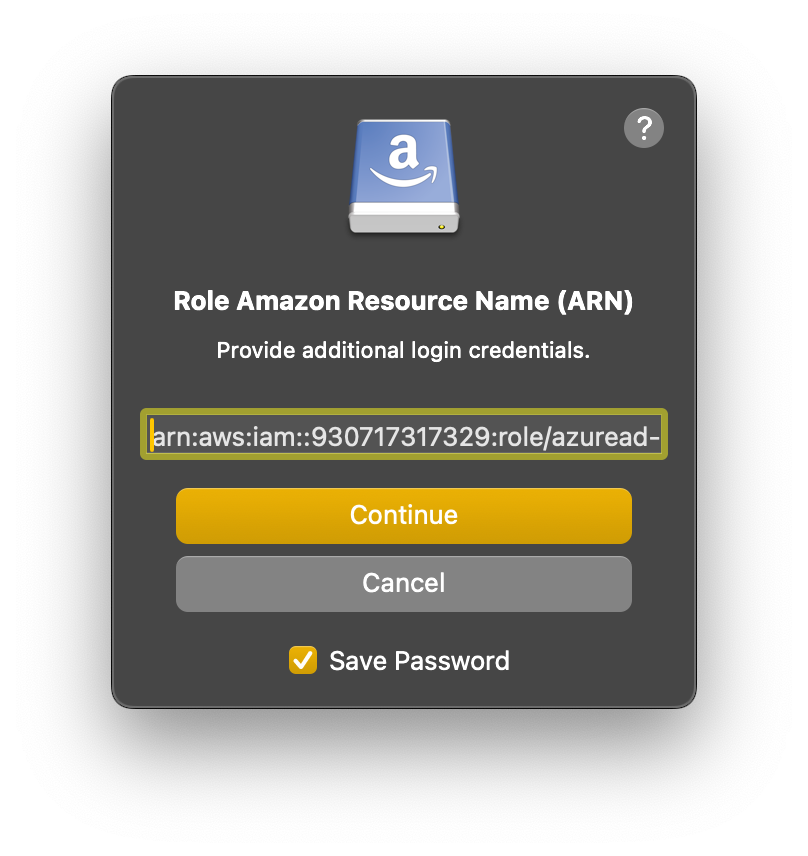

5. Enter the Role ARN from the previous step when prompted. It will be saved in the bookmark as a custom property.

   Note

   Alternatively set role_arn as a custom property in a custom connection profile.



Troubleshooting

Not authorized to perform sts:AssumeRoleWithWebIdentity

Validate the Trusted entities in Trust relationships in the IAM console.

Request ARN is invalid

The role ARN entered is not valid.

The security token included in the request is invalid

Invalid client token ID. Check the OAuth Client ID in the connection profile.

References

• AWS Identity and Access Management → OIDC federation
